Package Includes:

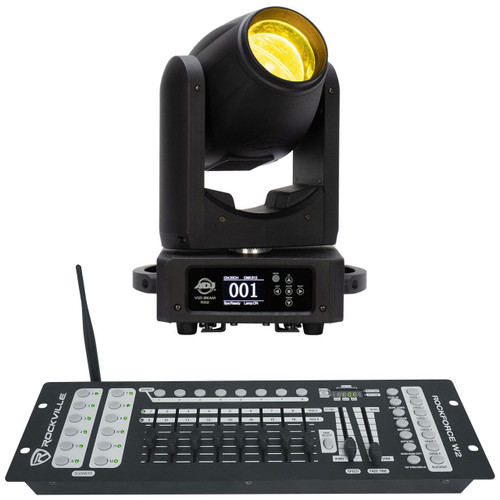

• (1) American DJ ADJ Vizi Beam RX2 Wireless DMX Strobe/Gobo Moving Head Light
• (1) Rockville ROCKFORCE W2 192 Channel Wireless 2.4Ghz DMX Lighting Controller

---

What's In The Box:

• Vizi Beam RX2
• 2x Omega Brackets (107 Type)
• 2M, Outdoor Locking 14AWG Power Cord

Description:

The ADJ Lighting Vizi Beam RX2 is a compact, high-performance moving head beam fixture that features a 100W Osram Sirius HRI discharge lamp, a razor-sharp 2-degree beam, two prism effects, and a host of high-performance features for the modern lighting professional.

Elevate your lighting performance with the ADJ Lighting Vizi Beam RX2, a compact and quick moving head beam fixture designed for the modern lighting designer. Featuring a vigorous 100W Osram Sirius HRI discharge lamp with a 6,000-hour lifespan, this potent fixture delivers stunning visuals with a precise 2-degree beam angle, as well as, high speed 3-phase pan/tilt motors for maximum performance. Vizi Beam RX2 is designed for live events and venues looking for a small footprint lighting fixture that creates high impact lightshow.

Unlock a wealth of features including on-board wireless DMX, two prism wheels (16-facet circular & 4-facet linear), a frost effect, motorized focus (with 16-bit fine focus), along with a 14-color dichroic wheel that includes CTO (3200K), CTB (9000k) & UV filters) and 15 static GOBOs + open (3 GOBOs are beam reducers).

The fixture boasts advanced features, including 2 rotating prisms (16-facet circular & 6-facet linear + prism overlay), a frost filter for creating wash effects, and pan/tilt locks for added stability during transportation and rigging. With a color LCD display, 0-100% smooth dimming, and various strobe speeds, the Vizi Beam CMY offers intuitive control.

Designed for convenience, it features outdoor-rated In/Out locking connections for power daisy-chaining, 5-pin In/Out DMX sockets and a color LCD display with 4-button function menu. The Vizi Beam RX2 is a versatile and reliable lighting solution for any high-octane event.

Features:

• On-Board Wireless DMX
• Motorized Focus + 16-bit fine focus
• 2-degree beam angle
• Frost Filter to create wash effect
• High quality glass lens
• 2 Rotating prisms:
• 0-100% smooth dimming
• Various strobe speeds
• OTA, wireless, firmware updates
• Fan cooled

Specifications:

Light Source:

• OSRAM Sirius HRI 100W Discharge Lamp (6,000 hr.)
• Color temperature: 9000K (+/- 300K)ware / Hardware for Mac & PC

Color Wheel:

• 14 dichroic colors + white (Includes CTO (3200K), CTB (9000k) & UV)
• Indexable color wheel for split colors

GOBO Wheel:

• 15 static GOBOs + open (3 GOBOs are beam reducers)
• GOBO Shake Effect

Prism Wheels:

• 2 Rotating prisms
• 16 facet circular and 4 facet linear prisms

Control:

• Protocols: DMX512 & RDM
• Control Mode: DMX512 & Manual (On-board Controls)
• 2 DMX Channel Modes: 12/16 Channels
• Color LCD display with 4-button function menu
• 0-100% smooth dimming
• Various strobe speeds
• With Wired Digital Communication Network

Pan/Tilt:

• Pan: 540 degrees (plus 16-bit fine pan)
• Tilt: 270 degrees (plus 16-bit fine tilt)
• 3 Phase, High Speed, Pan/Tilt motors

Connections:

• DMX Connections: 5-pin DMX In/Out (Data link max: 32 fixtures)
• Power Connections: Outdoor locking In/Out connections to daisy chain power

Electrical:

• Multi-voltage operation: 100-240V, 50/60Hz
• Max power consumption: 168W (@120V), 157W (@230V)
• Fuze Protected: 3.15A

Dimensions & Weight:

• Dimension: 9” (L) x 12” (W) x 16.3” (H) (230 x 304 x 416mm)
• Weight: 16.5 lbs. / 7.5 kg.

Approvals / Ratings:

• CE
• cETLus (Pending)

---

All About Your ROCKFORCE W2:

How To Set Up Your ROCKFORCE W2:

Buttons, Faders, & Controls Explained on Your ROCKFORCE W2:

How To Set Up Wireless DMX with Your ROCKFORCE W2:

How To Set Up a Scene on Your ROCKFORCE W2:

How To Set Up a Chase on Your ROCKFORCE W2:

Includes:

• Lighting Controller
• Power Cable
• Wireless Transmitter Antenna
• Manual and Warranty Card

Description:

Rockville is proud to introduce the all new ROCKFORCE W2 universal DMX Controller with 192 DMX channels. This controller has a built-in wireless DMX transmitter allowing you to control your lights wirelessly. The way wireless DMX works is that your controller has a transmitter and your light needs to have a receiver. Some lights have the wireless DMX receiver built in. If they don't, we now sell a wireless DMX receiver called the DMX-WRE. This will add a wireless DMX receiver to your light. This DMX controller has the wireless transmitter built in.

Even if you have only one wireless receiver, you can have a setup with this wireless DMX controller and you can connect one receiver to your light, and then daisy chain all your other lights together.

Another option is to have each one of your lights with a wireless receiver and then you literally need no DMX wires. This willactually save you money because our wireless DMX receivers cost less than most DMX cables. (search DMX-WRE).

This controller is easy to use and is designed to work seamlessly with lights from the leading brands such as Chauvet, American DJ and more! Our DMX controller is top quality and includes easy to understand instructions. This controller functions the same as the other leading brand controllers.

With the ROCKFORCE W2 you can control 12 lights with up to 16 channels per light. In addition, there is a 4-bit LED display and built in microphone which can be used to set up automatic modes. A great function we would like to mention is that you can take the program from any light and easily assign it to another light. This added feature provides flexibility and will saves you a ton of time at your next gig!

Although this controller has complex features we were able to design it with users of all experience levels in mind. This controller is so user friendly we gave it to some people who had little to no experience using lighting controllers and they were able to get the hang of it in no time!

We tested this against controllers from the leading and most famous lighting manufacturers and our controller performed as good or better at a fraction of the price! We are so confident in the reliability, build quality, and your satisfaction with this product that we will give you a 30-day money back guarantee. You can use the item and if you don't love it, then we will cover return shipping cost and give you all your money back upon receiving the return.

Features:

• Rockville ROCKFORCE W2 192 Channel Light/Fog DMX Lighting Controller With Built In Wireless DMX Transmitter
• Built in wireless DMX transmitter and antenna
• Model DMX-WRE receiver available in our store is a DMX receiver compatible with this
• This is also compatible with all of our wireless DMX lights
• 12 Scanners of 16 channels each
• 23 Banks of 8 programmable scenes
• 192 DMX channels of control
• 6 Programmable chases of 184 scenes
• 8 Sliders for manual control of channels
• Automatic mode program controlled by speed and fade time sliders Fade time /speed
• Blackout master button
• Reversible DMX channels allows fixture to react opposite to others in a chase
• Manual override allows you to grab any fixture on the fly
• Built-in microphone for music triggering
• DMX polarity selector
• Power failure memory
• 4-bit LED display
• Power Supply: 110-240Vac, 50-60Hz (DC9V-12V)
• Electric Current: No less than 300mA
• Power Consumption: 10W
• Control Signal: DMX512
• Control Channels: 192CH
• Product Dimensions (L x W x H): 19" x 5.24" x 2.76" inches
• Product Weight: 3.75 lbs

Wireless DMX Features:

• Daisy-chain multiple lights using master/slave mode and use one receiver to control all of the connected lights. This setup requires one receiver or if your light has the receiver built in it requires nothing else additional
• Each light can have a receiver built in (or use our DMX-WRE on each light) and each light will have its own channels on the controller so they can all be controlled independently (this can be done with up to 7 lights/groups)
• Makes it easy to set up all of your lights without a mess of wires!
• Controls work without any delay. These are extremely reliable
• The product uses the 2.4GHz frequency band
• Efficient GFSK modulation with 126 channel high-speed frequency hopping (FHSS). Hops 1100 times per second for interference-free operation
• 3-color LED displays status and parameters
• One-touch operation
• 7 selectable groups of lights can be controlled independently
• Connect up to 25 receivers
• Requires you to hold the button to change linking - this prevents accidental un-linking
• System Information - CPU: 32-bitARM Core
• Distance: 1968 feet (600 meters)
• Modulation: GFSK maximum transmit power: 23 dBm
• Receiver Sensitivity: -94 dBm
